Monoblock

PROTRON

P2.130 L/TEH

  • Operation: one stage;
  • Emission class: Low NOx class 2 (<185 mg/kWh) according to EN267

Technologies

WORKING DIAGRAM

TECHNICAL DATA

Minimum power output (kW) 60
Maximum power output (kW) 130
Fan motor (kW) 0.13
Protection level IP21

OTHER AVAILABLE CONFIGURATIONS

  • Post-ventilation;
  • Continuous ventilation;
  • Adjustable pre-purge;
  • Quick start

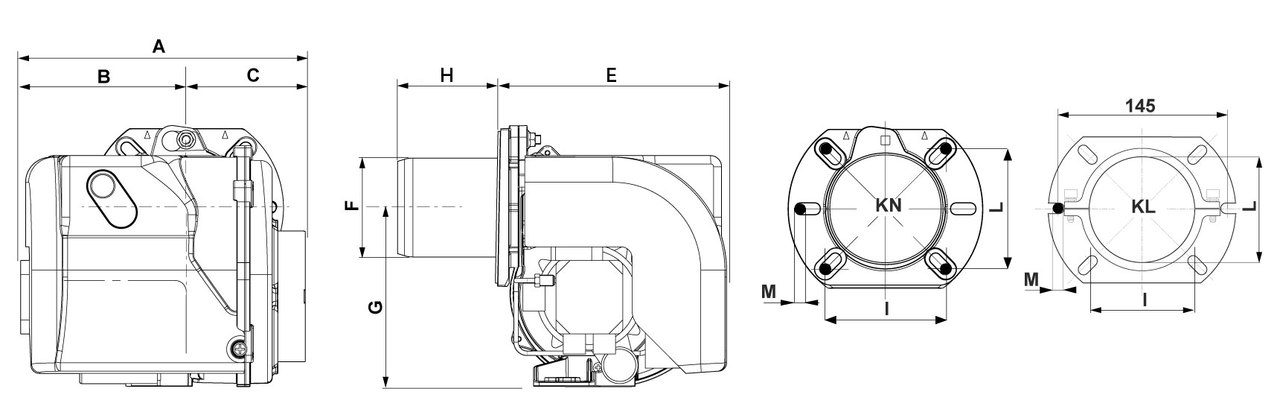

OVERALL DIMENSIONS

A B C E F G H I L M
275 169 106 204 98 160 KN: 115 / KL: 128 KN: 100...120 / KL: 100…120 KN: 100...120 / KL: 100…120 M8
